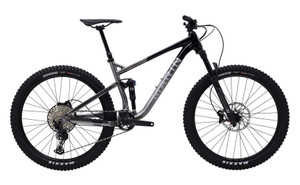

MARIN RIFT ZONE 2 27.5
Sale

MARIN RIFT ZONE 2 27.5

Marin Bikes
Availability:
IN STOCK!
$2,349.00 $1,249.00
Current Stock:
Adding to cart… The item has been added
Description

24 SEVEN BICYCLES MARIN RIFT ZONE 2 27.5



SPECIFICATIONS

  • FRAME

    Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

  • FRONT SUSPENSION

    RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset

  • REAR SUSPENSION

    RockShox Deluxe Select R, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware

  • RIMS

    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

  • HUB, REAR

    Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

  • HUB, FRONT

    Shimano HF-MT410B, 110x15mm, Centerlock

  • SPOKE, NIPPLES

    14g Black Stainless Steel

  • TIRES

    Vee Tire Flow Snap 27.5x2.35", Tackee Compound, Tubeless Ready

  • DERAILLEUR, REAR

    Shimano Deore, 12-Speed, SGS

  • DERAILLEUR, FRONT

    -

  • SHIFT LEVER

    Shimano Deore, 12-Speed, SL-7100R

  • CRANKSET

    FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

  • BOTTOM BRACKET

    Mega EXO 73mm BSA

  • CHAIN

    KMC X-12 Silver and Black

  • CASSETTE

    Shimano, Deore 12-Speed, 10-51T

  • BRAKE, FRONT

    Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

  • BRAKE, REAR

    Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

  • BRAKE LEVERS

    Shimano BL-MT201 Hydraulic

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin Single Clamp Locking

  • HEADSET

    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

  • SADDLE

    Marin Speed Concept

  • PEDALS

    -

  • EXTRAS

    Bolt-On Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY

2022 Rift Zone 27.5 2 geometry diagram
  XS S M L XL
STACK 579 583.6 588.2 597.3 601.9
REACH 410 425 445 465 485
HEADTUBE ANGLE 66.5° 66.5° 66.5° 66.5° 66.5°
HEADTUBE LENGTH 105 110 120 125 130
SEATTUBE ANGLE 75° 74.7° 74.5° 74.3° 74.1°
SEATTUBE LENGTH 330 380 425 470 515
TOPTUBE EFFECTIVE 570.6 586.8 608.1 632.9 651.9
BB HEIGHT 338.5 338.5 338.5 338.5 338.5
BB DROP 18 18 18 18 18
CHAINSTAY 430 430 430 430 430
WHEELBASE 1129.4 1146.3 1168.3 1192.3 1214.3
STANDOVER HEIGHT 647 665 702 727 768
FORK OFFSET 42 42 42 42 42
SEATPOST DIAMETER 30.9 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780 780
STEM LENGTH 35 35 35 35 35
CRANK LENGTH 170 170 175 175 175

All lengths in millimeters

SUSPENSION SETUP

REAR SHOCK SETUP

Recommended Sag = 30%/15mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SETUP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacture.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

ROCKSHOX DELUXE SELECT R

RIDER WEIGHT AND SHOCK SETUP
LBS KG PSI
120 54 127
130 59 130
140 64 135
150 68 140
160 73 146
170 77 152
180 82 166
190 86 180
200 91 195
210 95 205
220 100 215
230 104 225
240 109 235
250 113 245
260 118 255
270 122 265
