Kona Process 134 CR/DL
Sale

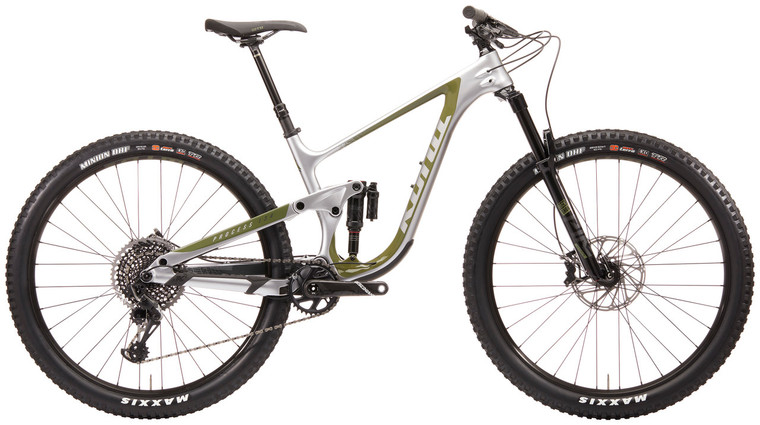

2020 KONA PROCESS 134 CR/DL 29

Kona Bikes
Availability:
IN STOCK!
$5,999.00 $2,999.00
$5,999.00
(You save $3,000.00 )
Current Stock:
Adding to cart… The item has been added
Description
Description
The Process 134 CR DL 29 represents four years of design iterations, mechanical engineering and real-world testing. Born from the beloved Process 111, it ticks all of the longer/lower/slacker boxes while still maintaining the classic Kona feel of really freaking fun. A carbon frame features a 140mm RockShox Pike Ultimate RC2 fork up front, a RockShox Super Deluxe Ultimate rear shock and a SRAM X01 Eagle 12-speed drivetrain. With a build this sweet the 134 CR DL leaves nothing to be desired.
  • Frame Material: Kona Carbon
  • Wheels: WTB KOM Light i30 TCS 29” on DT Swiss 370 Hubs
  • Suspension Platform: Beamer
  • Front/Rear Suspension: 140mm/134mm
  • Rear Shock: RockShox Super Deluxe Ultimate
  • Fork: RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm
  • Crankset: SRAM XO1 Eagle 12spd
  • Drivetrain: SRAM XO1 Eagle 12spd
  • Brakes: SRAM G2 RSC with 200mm front/180mm rear rotors
  • Seat Post: RockShox Reverb w/1x Remote Lever 31.6mm
  • Cockpit: Kona XC/BC 35mm Bar/ XC/BC 35 Stem with Kona Lock-on Key Grip
  • Front Tire: Maxxis Minion DHF EXO TR 3C 29x2.5" WT
  • Rear tire: Maxxis Minion DHF EXO TR 3C 29x2.3"
  • Saddle: WTB Volt Pro


SPECIFICATIONS

FRAME MATERIAL Kona Carbon 134mm Travel
SIZES S, M, L, XL
REAR SHOCK RockShox Super Deluxe Ultimate Trunnion
FORK RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm Tapered 110mm Spacing
CRANKARMS SRAM Descendant Carbon DUB
CHAINRINGS 34t X-Sync Eagle
B/B SRAM DUB PF92
PEDALS n/a
CHAIN SRAM GX-Eagle
FREEWHEEL SRAM X01-Eagle 10-50t 12spd
CHAINGUIDE n/a
F/D n/a
R/D SRAM X01-Eagle
SHIFTERS SRAM X01-Eagle
BRAKE CALIPERS SRAM G2 RSC
FRONT BRAKE ROTOR SRAM Centerline 200mm
REAR BRAKE ROTOR SRAM Centerline 200mm
BRAKE LEVERS SRAM G2 RSC
HEADSET FSA Orbit 1.5 E ZS
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST Rock Shox Reverb w/1x Remote Lever 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt Pro
FRONT HUB DT Swiss 370 110x15mm
REAR HUB DT Swiss 370 148x12mm
SPOKES Stainless Black 14g
RIMS WTB KOM Light i30 TCS
FRONT TIRE Maxxis Minion DHF EXO TR 3C 29x2.5" WT
REAR TIRE Maxxis Minion DHF EXO TR 3C 29x2.3"
PAINT COLOR Gloss Polar Silver & Olive w/ Olive & Charcoal Decals
EXTRAS n/a

All specifications are subject to change without notice

GEOMETRY mm inches

  SIZE S M L XL
1 ST LENGTH 385 410 450 485
2 TT LENGTH 569 596 625 664
3 REACH 425 450 475 510
4 STACK 601 605 615 625
5 STANDOVER 715 725 725 725
6 HT ANGLE 66.0 66.0 66.0 66.0
7 HT LENGTH 93 98 109 120
8 ST ANGLE 76.5 76.5 76.3 76.2
9 CS LENGTH 427 427 427 427
10 BB DROP 33 33 33 33
11 BB HEIGHT 342 342 342 342
12 WHEELBASE 1159 1186 1216 1255
13 FRONT CENTER 734 761 791 830
14 FORK LENGTH 551 551 551 551
15 FORK OFFSET 51 51 51 51
KONA Geometry
