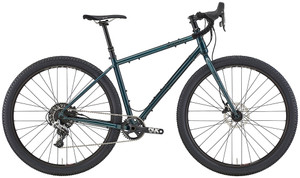

Kona Sutra Black
Sale

KONA SUTRA

Kona Bikes
Availability:
IN STOCK!
$2,099.00 $1,299.00
$2,099.00
(You save $800.00 )
Current Stock:
Adding to cart… The item has been added
Description
DESCRIPTION

The Sutra is many things. It’s functional. It’s stylish. It’s incredibly versatile, and it comes ready for the long haul on the bike tour of your dreams. Our Kona Cromoly steel frame is outfitted with a Brooks saddle and matching microfiber bar tape, integrated shifter/brake levers, proper fenders, and a real Tubus Tara Big Apple low-rider front rack. It’s a modern take on the classic touring bike. It’s a grocery getter that’s easy on the eyes. It’s the feeling of steel across pavement that reminds you why you love turning the cranks on long rides. Just like its name suggests it’s the perfect guide for your every ride.


SPECIFICATIONS

FRAME MATERIAL Kona Cromoly Butted
SIZES 48, 50, 52, 54, 56, 58
REAR SHOCK n/a
FORK Kona Project Two Cromoly Disc Touring
CRANKARMS Shimano GRX 600 or Prowheel
CHAINRINGS 30/46t
B/B Shimano 68mm or Prowheel BB68+
PEDALS n/a
CHAIN Shimano Deore or KMC X10
CASSETTE Shimano Deore 11-36t 10spd or Sunrace 11-36t 10spd
CHAINGUIDE n/a
F/D Shimano GRX 400
R/D Shimano GRX 400
SHIFTERS Shimano Tiagra
BRAKE CALIPERS TRP HDC711C Mechanical / Hydraulic
FRONT BRAKE ROTOR TRP TR160mm
REAR BRAKE ROTOR TRP TR160mm
BRAKE LEVERS Shimano Tiagra
HEADSET FSA No.1/No.10
HANDLEBAR Kona Road
STEM Kona Road
SEATPOST Kona Deluxe Thumb w/Offset 27.2mm
SEAT CLAMP Kona Clamp
GRIPS Brooks Microfiber Brown
SADDLE Brooks B17 Leather
FRONT HUB Formula 100x12mm
REAR HUB Formula 142x12mm
SPOKES Stainless Black 14g
RIMS WTB ST i23 TCS 2.0
FRONT TIRE Schwalbe Marathon Mondial 700x40c
REAR TIRE Schwalbe Marathon Mondial 700x40c
PAINT COLOR Satin Midnight w/ Gloss Bronze Decals
EXTRAS Fenders w/ Mudflaps, Tubus Tara Big Apple Front Rack

All specifications are subject to change without notice

GEOMETRYMM

  SIZE 48 50 52 54 56 58
1 ST LENGTH 480 500 520 540 560 580
2 TT LENGTH 523 538 555 571 588 605
3 REACH 375 380 385 390 395 400
4 STACK 551 570 591 610 632 651
5 STANDOVER 752 770 794 817 835 854
6 HT ANGLE 70.5 70.5 70.5 70.5 70.5 70.5
7 HT LENGTH 105 125 150 170 195 215
8 ST ANGLE 75.0 74.5 74.0 73.5 73.0 72.5
9 CS LENGTH 445 445 445 445 445 445
10 BB DROP 74 74 72 72 70 70
11 BB HEIGHT 281 281 283 283 285 285
12 WHEELBASE 1036 1047 1061 1073 1086 1098
13 FRONT CENTER 602 613 626 638 651 662
14 FORK LENGTH 415 415 415 415 415 415
15 FORK OFFSET 50 50 50 50 50 50
