RECREATIONAL MOUNTAIN BIKING
ENTRY-LEVEL RIDERS
FITNESS DIRT ROAD RIDING

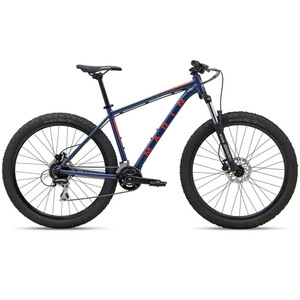

The Eldridge Grade is perfectly suited for recreational riders wishing to explore singletrack and dirt trails with a mountain bike built for real trails, with trail capable suspension forks and all-conditions disc brakes.
Key upgrades over the Eldridge Grade:
- Shimano Altus 2x9 drivetrain
- SR Suntour XCM HLO fork w/ hydraulic lockout
Specifications
-
Frame
Series 1 6061 Aluminum, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts, Disc Brake
-
Front Suspension
SR Suntour XCM HLO Disc, 120mm Travel, Hydraulic Lockout, Preload Adjustment
-
Rims
Double Wall Alloy
-
Hub, Rear
Forged Alloy, 6-Bolt Disc, 32H
-
Hub, Front
Forged Alloy, 6-Bolt Disc, 32H
-
Spoke, Nipples
Black Stainless Steel, Brass Nipples
-
Tires
MTB, 27.5x2.25"
-
Derailleur, Rear
Shimano Alivio, 9-Speed, Shadow Design
-
Derailleur, Front
Shimano Altus, Double
-
Shift Lever
Shimano Altus 2x9
-
Crankset
Forged Alloy, Steel Chainrings, 36/22T
-
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
-
Chain
KMC X9
-
Cassette
Shimano HG200, 9-Speed, 11-36T
-
Brake, Front
Tektro M275 Hydraulic Disc, 160mm Rotor
-
Brake, Rear
Tektro M275 Hydraulic Disc, 160mm Rotor
-
Brake Levers
Tektro M275 Hydraulic Disc
-
Handlebar
31.8 Riser, 20mm Rise, 740mm Width
-
Stem
Alloy, 31.8mm, 45mm
-
Grips
Entity MTB, Closed End
-
Headset
44mm Zero Stack, 8mm Cone
-
Seatpost
Alloy, 27.2mm
-
Saddle
Entity MTB
-
Pedals
Nylon Platform
Specifications, pricing, and availability are subject to change without notice.
Geometry
S | M | L | |
---|---|---|---|
Stack | 610 | 610 | 650 |
Reach | 383.5 | 398.5 | 417 |
Headtube Angle | 69° | 69° | 69° |
Headtube Length | 100 | 100 | 105 |
Seattube Angle | 73° | 73° | 73° |
Seattube Length | 406 | 456 | 506 |
Toptube Effective | 570 | 585 | 605 |
BB Height | 299 | 299 | 299 |
BB Drop | 47 | 47 | 47 |
Chainstay | 430 | 430 | 430 |
Wheelbase | 1072 | 1087 | 1107 |
Standover Height | 713 | 753 | 793 |
Fork Offset | 46 | 46 | 46 |
Seatpost Diameter | 27.2 | 27.2 | 27.2 |
Handlebar Width | 740 | 740 | 740 |
Stem Length | 45 | 45 | 45 |
Crank Length | 170 | 170 | 170 |
All lengths in millimeters
