HARO DALEY 1 BLACK

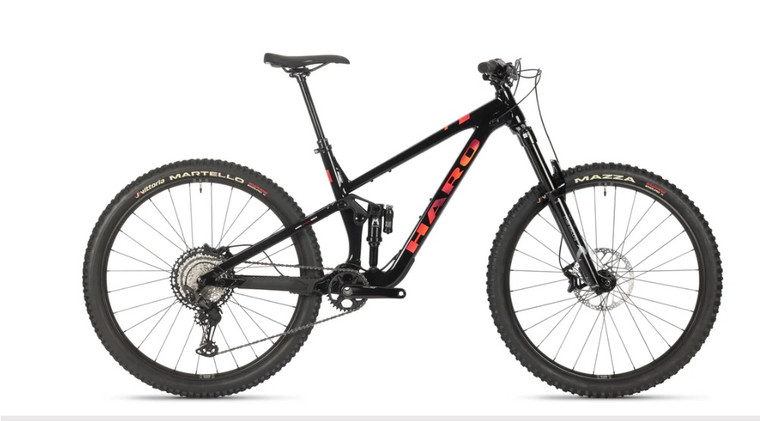

HARO DALEY ALLOY 1 MOUNTAIN BIKE

Haro Bikes
Availability:
CALL STORE FOR CURRENT INVENTORY
$3,499.00
Current Stock:
Description

24 SEVEN BICYCLES  DALEY ALLOY 1

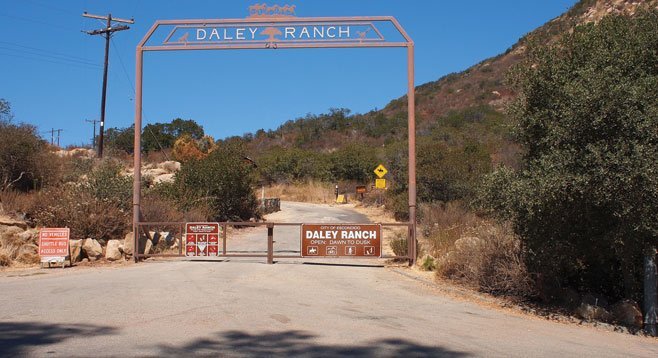

DALEY RANCH ENTRANCE

Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt.


FEATURES

  • Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
  • Marzocchi Bomber Air shock. 140mm travel, with sweep adjust
  • Marzocchi Bomber Z1 fork, 150mm Travel with sweep adjust
  • Shimano XT M8100 drivetrain
  • Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
  • TRP Slate EVO 4-piston hydraulic disc brakes. 203mm front rotor, 180mm rear rotor
  • Race Face Chester 35mm rise bars and 40mm reach stem
  • Kind Shock Rage-I dropper post, size-specific
  • Includes tubeless valves and sealant

SPECIFICATIONS

FRAMESET
Frame Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Marzocchi Bomber Z1, Rail - sweep adjust, 150mm travel
Frame Shock Marzocchi Bomber Air, sweep adjust, 140mm travel
Colors Trans Black / Amber, Matte Stone Grey
Weight 38.2 lbs 17.29 kg, (L)
DRIVETRAIN
Cranks Shimano XT, FC-M8120-1, 32T, 165mm, 55:CL
Pedals N/A
Chain Shimano CN-M8100 HG 12-speed
Bottom Bracket Shimano BB-MT501 BSA 68/ 73mm
Front Derailleur N/A
Rear Derailleur Shimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur Shifter Shimano XT 12-speed, SL-M8100R
Freewheel/Cassette Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims WTB KOM Trail, I30, sleeved double-wall alloy, 28H TSC 2.0
Hubs Alloy CNC, 4 sealed bearings, 110 x 15 front axle, 148 x 12 rear axle with 5-pawl driver
BRAKING SYSTEM
Brakes TRP Slate EVO 4-piston hydraulic disc with 203mm front rotor and 180mm rear rotor
Brake Levers TRP Slate EVO
OTHER COMPONENTS
Grips/Tape WTB Wavelength 130mm lock-on
Handlebar Race Face Chester 35mm OD, 780mm wide, 35mm rise
Stem Race Face Chester 35mm ID, 40mm Reach
Headset FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle WTB Volt Medium, PU leather, Flex Tuned, with ABR corners
Seat Post Kind Shock Rage-i dropper post, 34.9mm OD. Lengths: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp 3D forged 6061 aluminum, 38.9mm ID
Extras Includes tubeless valves and sealant

GEOMETRY

SIZE S M L XL
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 553mm 590mm 617mm 644mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 428mm 445mm 445mm 445mm
BB Drop 23mm 33mm 33mm 33mm
Wheelbase 1172mm 1237mm 1266mm 1296mm
Head Tube Length 90mm 100mm 110mm 120mm
Standover 691mm 685mm 705mm 705mm
Stack Height 579mm 610mm 619mm 628mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 544mm 561mm 561mm 561mm
Fork Offset 44mm 44mm 44mm 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 27.5 29 29 29
